Expansion Slots :Supports up to 10 PCle 3.0 interfaces, including 8 PCle 3.0 slots
Appearance/Height :2U rack mounted server
Service Warranty :Service Warranty
MOQ :1 kilogram
Price :$2,606.06-2,717.17 / kilogram
Contact Now
Product Overviews
The Future Defined Data Center
Lenovo adopts industry leading technology and software defined products such as Lenovo Think Field XClarity and TruScale infrastructure services deliver cost-effective, reliable, and scalable solutions Solution: Manage the lifecycle of your data center requirements. ThinkSystem SR658 can be a number of According to analysis, support is provided for hybrid cloud, hyper converged infrastructure, video surveillance, high-performance computing, and more.
Support for workload optimization
Intel ® Aoteng ™ Data center level persistent memory delivers a new flexible memory layer specifically designed for data Central workload design, providing high capacity, reliability, and durability. This technology has practical implications for reality Data center operations have significant impact: restart time reduced from minutes to seconds, 1.2 times virtual Simulated machine density significantly improves data replication speed, reduces latency by 14 times, and increases IOPS by 14 times, And inject higher persistent data security into the hardware. Based on internal testing by Intel, August 2018.
Flexible storage
Lenovo AnyBay design allows for selection of drive interface type: SAS within the same drive rack Drive, SATA drive, or U.2NVMe PCle drive. You can use PCleSSD to By configuring the rack and using the remaining rack for capacity SAS drives, it can be upgraded as needed in the future Upgrade to more PCle SSDs.
Authorized IT Management
Lenovo XClarity Controller is equipped on all ThinkSystem servers Embedded management engine, used to standardize, simplify, and automate basic server management tasks Transform. Lenovo XClarity Administrator is a centrally managed ThinkSystem Virtualization applications for servers, storage, and networks can reduce up to manual operations 95% of the configuration time. By running XClarity Integrator, XClarity can be seamlessly integrated Integrating into existing IT environments helps simplify IT management, accelerate configuration, and curb costs.
Regarding Product Customization
Please contact online customer service The account manager provides you with one-on-one exclusive service Or directly contact professional customer
service (David) We always adhere to the business principle of honesty and trustworthiness, and have wonthe trust and support of our customers.

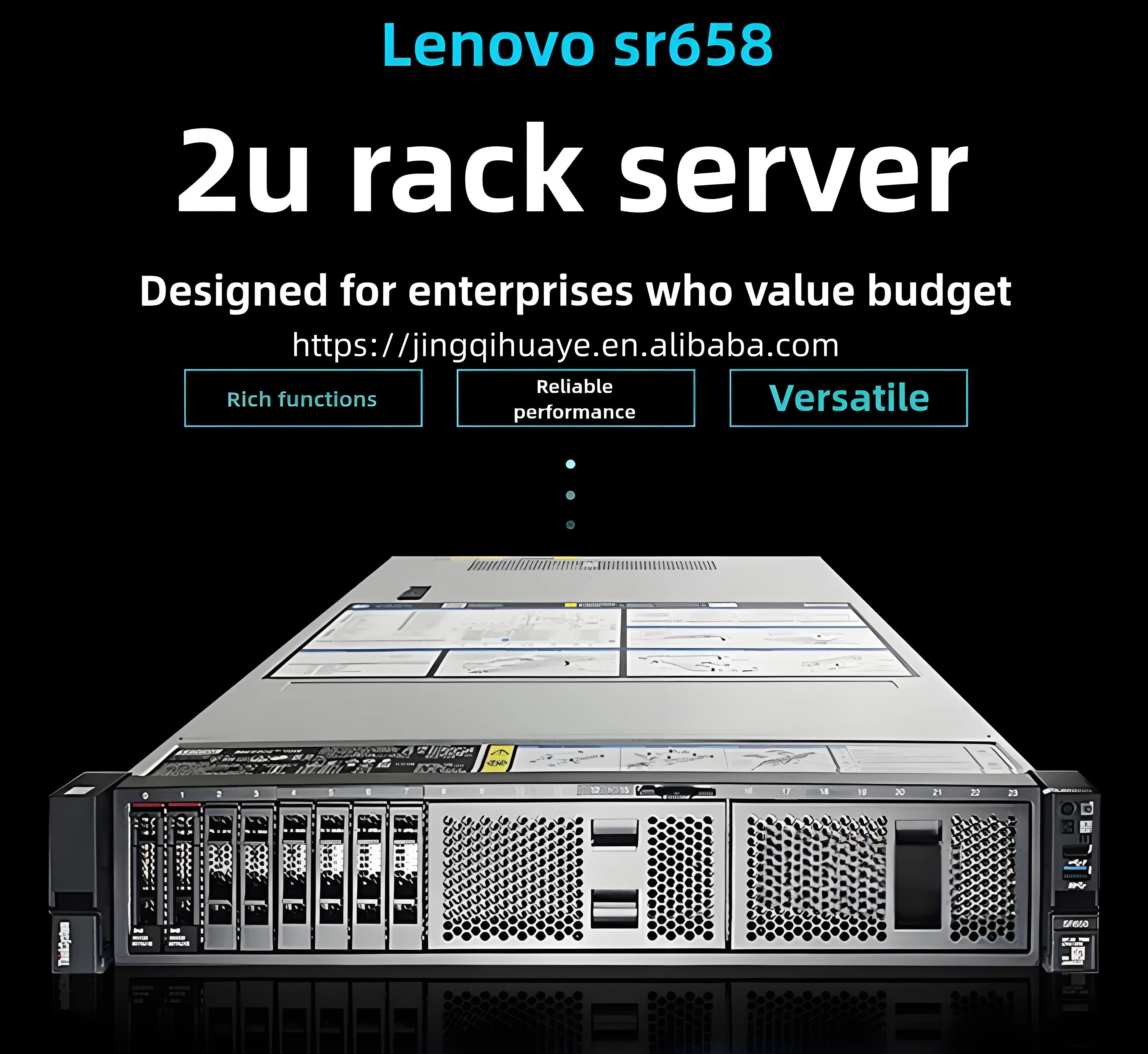

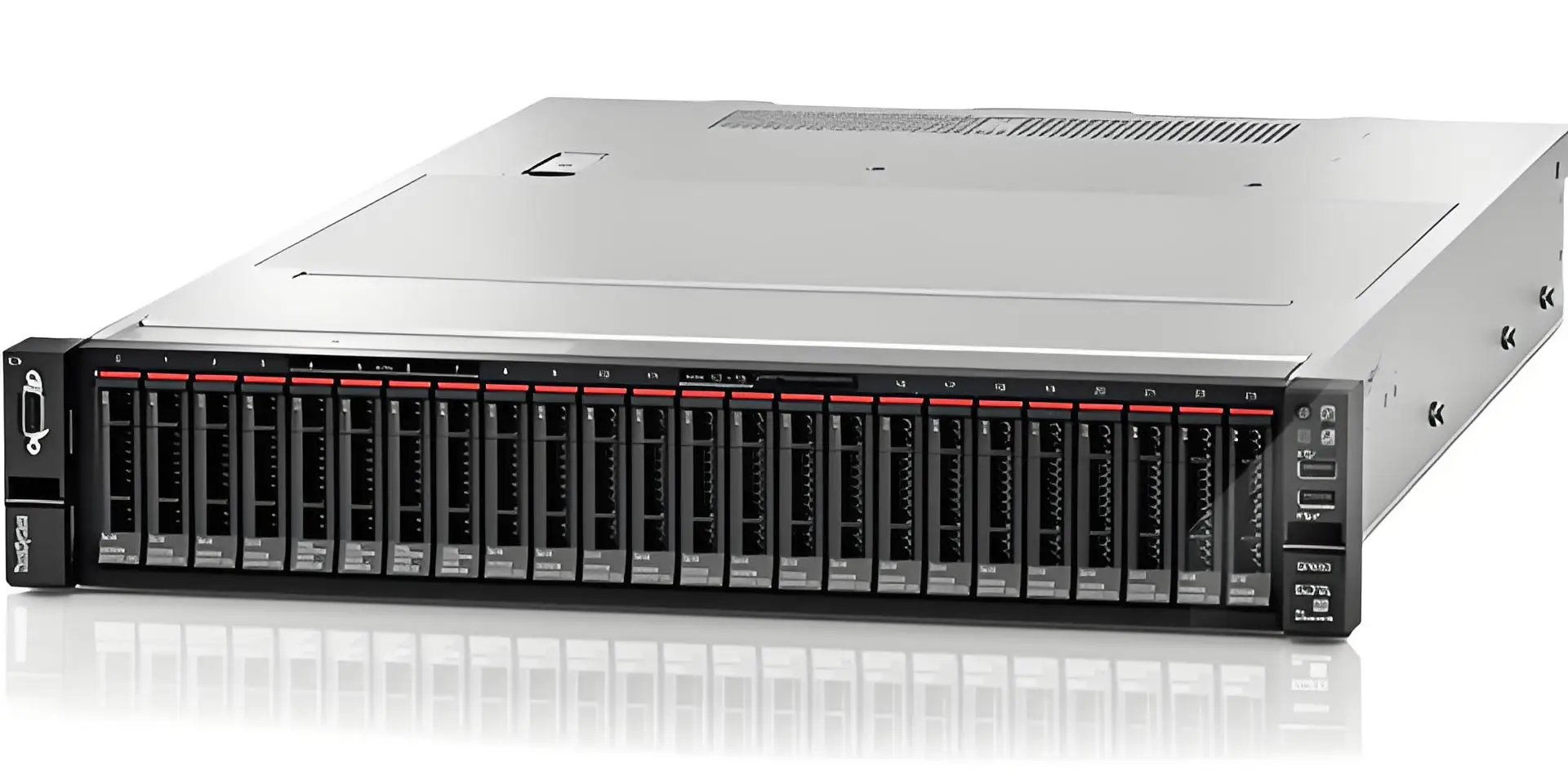

Appearance/Height
2U rack mounted server

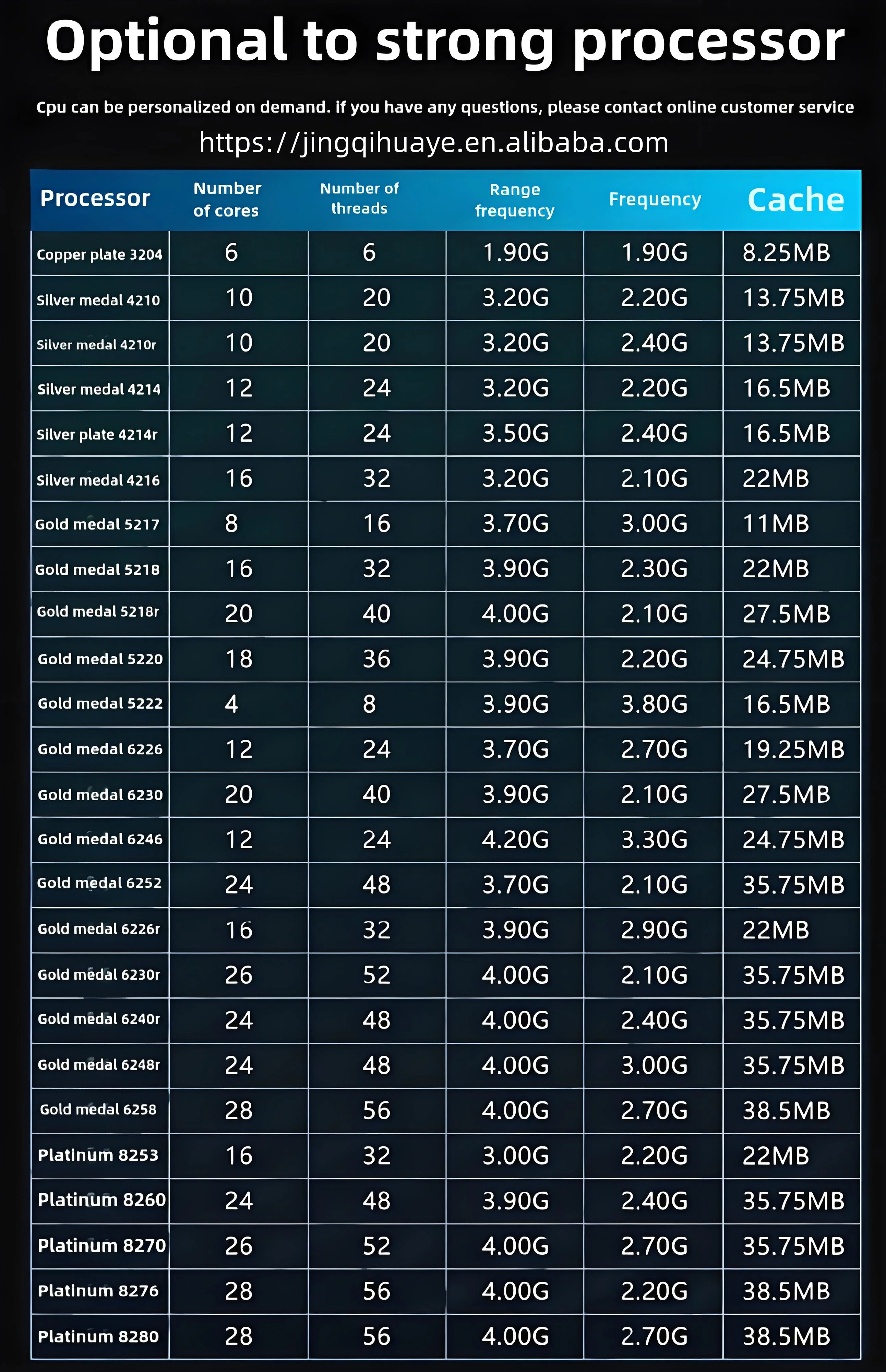

processor
Up to 2 second-generation Intel ® xeon ® Scalable processor Platinum series, up to 205W
Memory
Up to 9TB in 24 DIMM slots, using 128GB DIMMs and Intel ® Aoteng ™ Data center level persistent memory; 2666MHz /2933MHZ TruDDR4

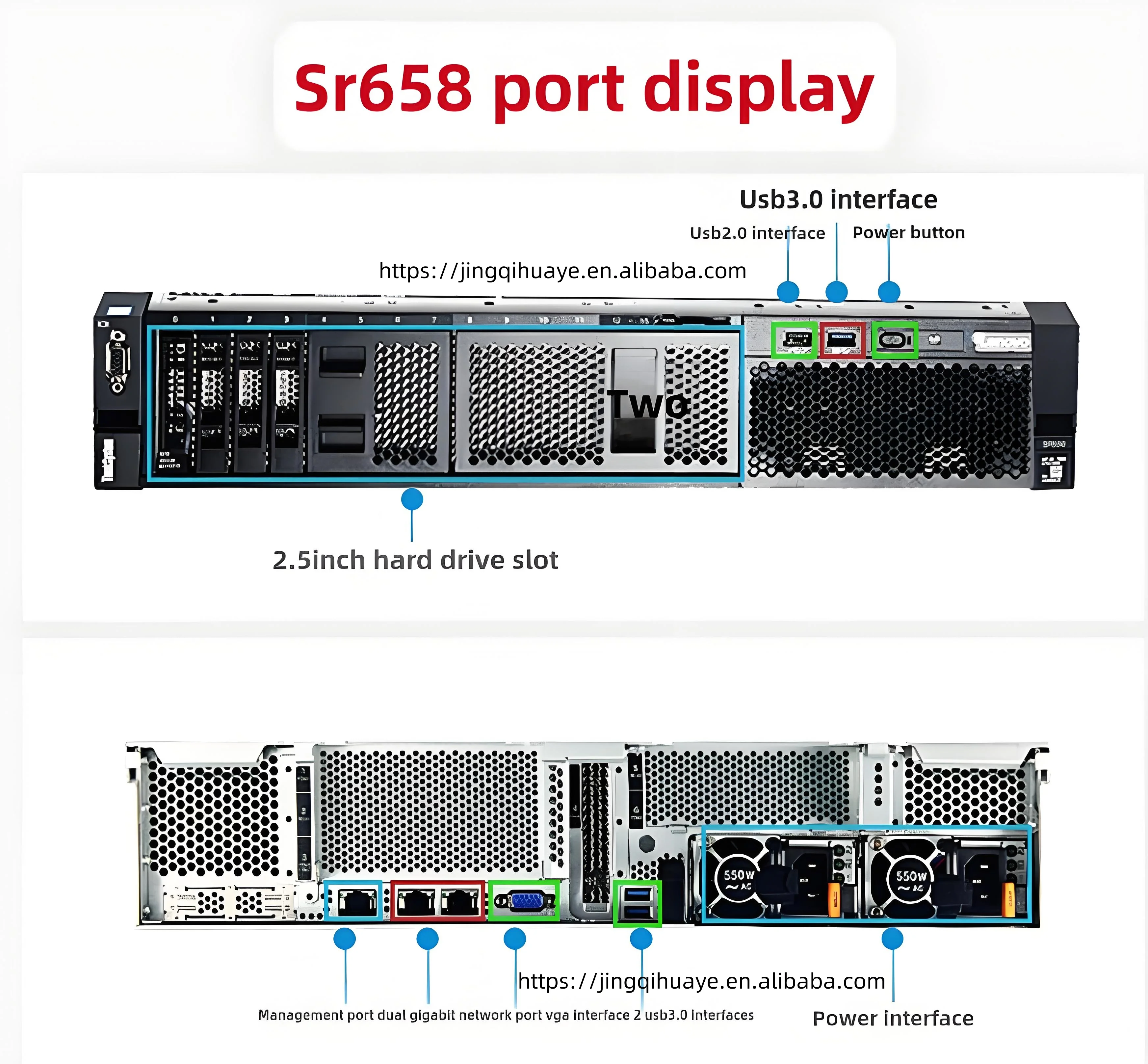

Hard drive Drive bays (total/hot swappable)
Support hot swappable hard drives, Up to 14 3.5-inch hard drives, Or up to 24 2.5-inch hard drives (including up to 12 AnyBay drives or up to 24 NVMe drives)+2 3.5-inch rear hard drives; Additionally, it can support 2 M.2 boot disks connected to PCH via PCIe interface (RAID1 supported)
Scalability Expansion Slots
Supports up to 10 PCIe 3.0 interfaces, including 8 PCIe 3.0 slots and 2 PCIe 3.0 NVMe interfaces, Includes 6 standard PCIe slots, 1 dedicated PCIe slot for RAID adapter and 1 LOM slot Expandable USB interfaces ≥ 7
network network interface
2/4 ports 1GbE LOM; 2/4 ports 10GbE LOM (Base-T or SFP+); 1 dedicated 1GbE management port
Power Supply Power supply (compliant with Energy Star 2.1 specifications)
2 hot swappable/redundant: 550W/750W/1100W/1600W 80 PLUS Platinum Power Supply; Or 750W 80 PLUS titanium power supply; Or -48V DC 80 PLUS Platinum Power Supply
Security and availability features
TPM 1.2/2.0; PFA; Hot swappable/redundant drives, fans, and power supplies; Continuous operation at a temperature of 45 ° C; Light path diagnostic LED; Perform front-end access diagnosis through a dedicated USB port
Management oriented system management
XClarity Controller embedded management, XClarity Administrator centralizes infrastructure delivery, XClarity Integrator plugin and XClarity Energy Manager for centralized server power management
operating system Supporting operating systems
Microsoft,Red Hat,SUSE,VMware.
HBA/RAID support
Hardware RAID (up to 24 ports) with flash cache; Up to 16 port HBA
Service Warranty
three years
