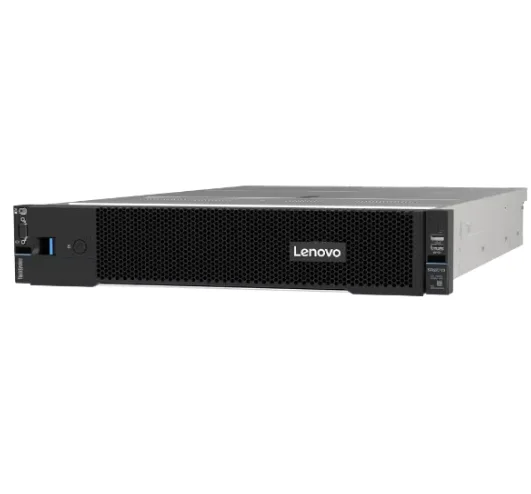

The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises
that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility
for future growth. The SR650 V3 is based on the new 5th generation Intel Xeon Scalable processor family (formerly
codenamed "Emerald Rapids").
The SR650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing,
virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications,
collaboration/email, streaming media, web, and HPC.
Product name
Lenovo ThinkSystem SR650 V3 Rack Server
Form factor
2U rack server
Processor
5th Generation Intel Xeon Scalable Processor
Memory
32 x DDR5 DIMM slots
RAID
SATA with SW RAID (0,1,5,10)
Power supply
750W, 1100W, 1800W, 2400W , 2600W
Network interfaces
LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters
GPUs
Up to 8x single-width GPUs or 3x double-width GPUs
Disk drive bays
Up to 20x 3.5” or 40x 2.5” drives Up to 36x NVMe drives supported with PCIe retimer adapters Rear: 2x 2.5”; 7mm SATA/NVMe hot-swap boot drives, support RAID Internal 2x M.2 SATA/NVMe boot drives, support RAID Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)
Expansion Slots
Up to 12x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot
