Drive Bay :6 x 2.5-inch NVMe,8 x 2.5-inch SAS/SATA/NVMe
Power Supplies :3200 W/2800 W/2400 W
Storage controllers :PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i
Embedded NIC :2 x 1GbE LOM card (optional)
Fans :Standard (STD) fan ,Up to six hot plug fans
MOQ :1 piece
Price :$300-2,000 / piece
Contact Now
Product Description
The Dell PowerEdge R760xa is a highperformance scale -as you grow server designed for use cases like • AI/ML/DL Training and Inferencing • Digital Twins, render graphics • Virtualization and VDI graphics
Product Parameters
Product name
Dell PowerEdge R760XA Rack Server
Form Factor
2U rack server
Processor
Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist Technology Up to two 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and optional Intel® QuickAssist Technology
Memory
• 32 DDR5 DIMM slot, supports RDIMM 8 TB max • Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor • Speeds up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor • Supports registered ECC DDR5 DIMMs only
Drive Bay
Front bays: • Up to 6 x E3.S Gen5 NVMe, max 46.08 TB • Up to 6 x 2.5-inch NVMe, max 92.16 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB
Power supplies
3200 W/2800 W/2400 W
Storage Controller
• Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs, or USB • External HBA (non-RAID): HBA355e, HBA465e, H965e • Software RAID: S160
Embedded NIC
2 x 1GbE LOM card (optional)
Networking Options
1 x OCP card 3.0 (optional)
NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.
Fans
• Standard (STD) fan • Up to six hot plug fans
Size
• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 946.73 mm (37.27 inches) - without bezel
932.89 mm (36.73 inches) - with beze
Company Information
Packaging & Delivery
Vesting Instrument
FAO Q1: Are you the TRADING COMPANY OrTECHNOLOGYCOMPANY? A: We're A technology company, which have a team full ofin-house certified technicians and specialists in
IT we all have over 20 years’ experience, so we can provide you professional technical service Q2: Why can you become my long-term partner? A: We have cooperated with major well-known marand have been granted authorization qualifications.Dell,
HPE, HUAWEl, Lenovo, Inspur, etc. And we are alsoAlibaba Verified Gold Supplier, which have A strong an
-d professionally trained pre-sales and after-sales team Q3: How can you guarantee the quality of the goods ? A: Well, as we are authorized by the cooperating manufacturer, we only provide original brand-new product
-s . Before delivery, our engineer will do the test for all the products , and make sure they have 100%new a
-ppearance, also can 100% work well. Q4:How about the warranty? A: All of our goods is 3years warranty Q5: When l placed orders from you, how about the lead time? A: most of our goods are in stock, but anyway, we will try our best to ship the goods for you asap and use
the fast shipping way to ship the goods Q6: how we make payment ?which way do you have A: TT, alibaba,paypal, WU. for these ways , you can use any way you want

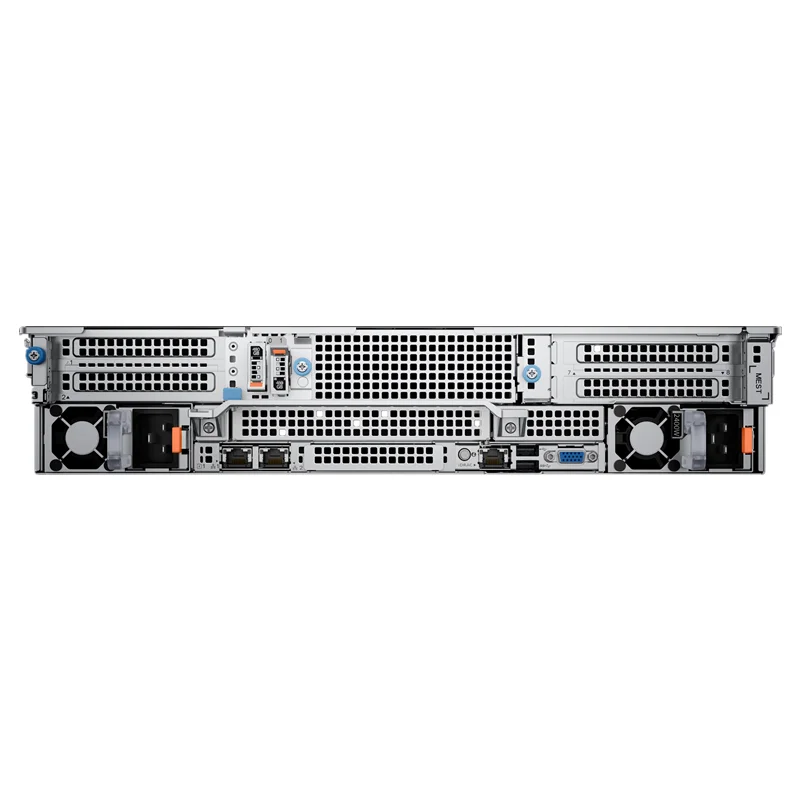

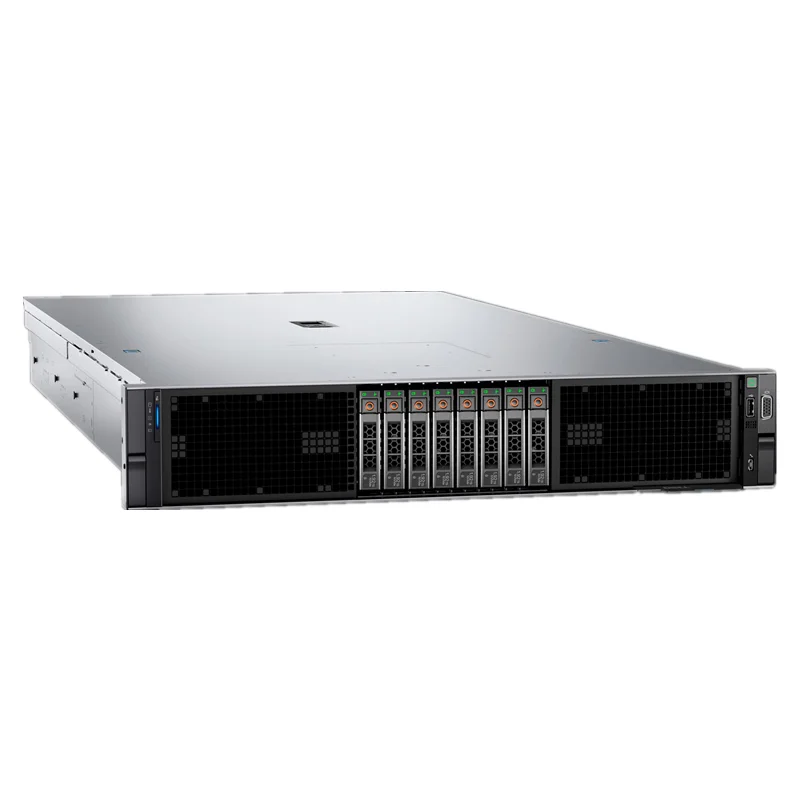

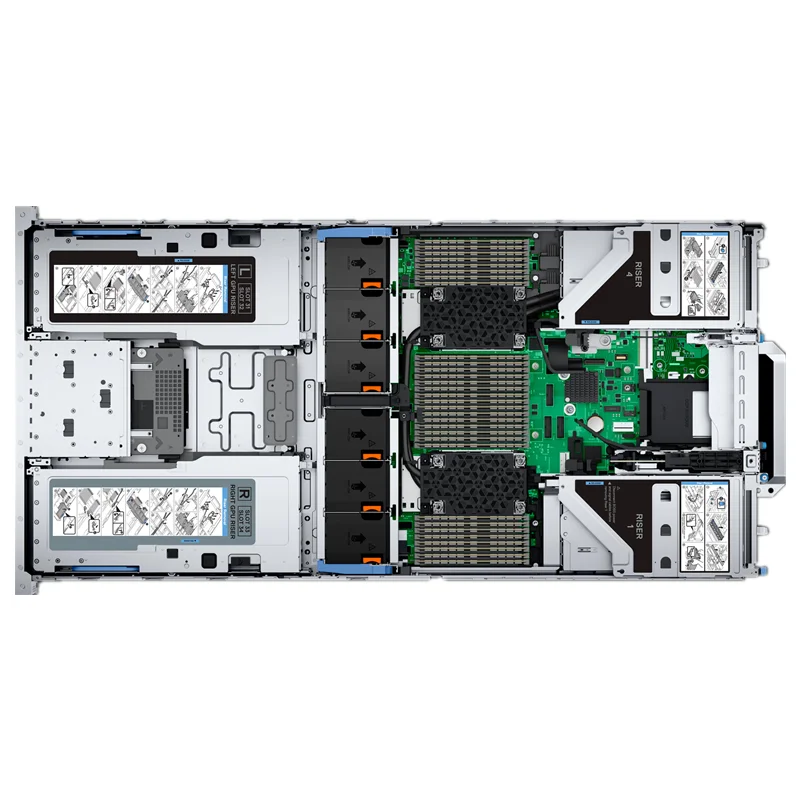

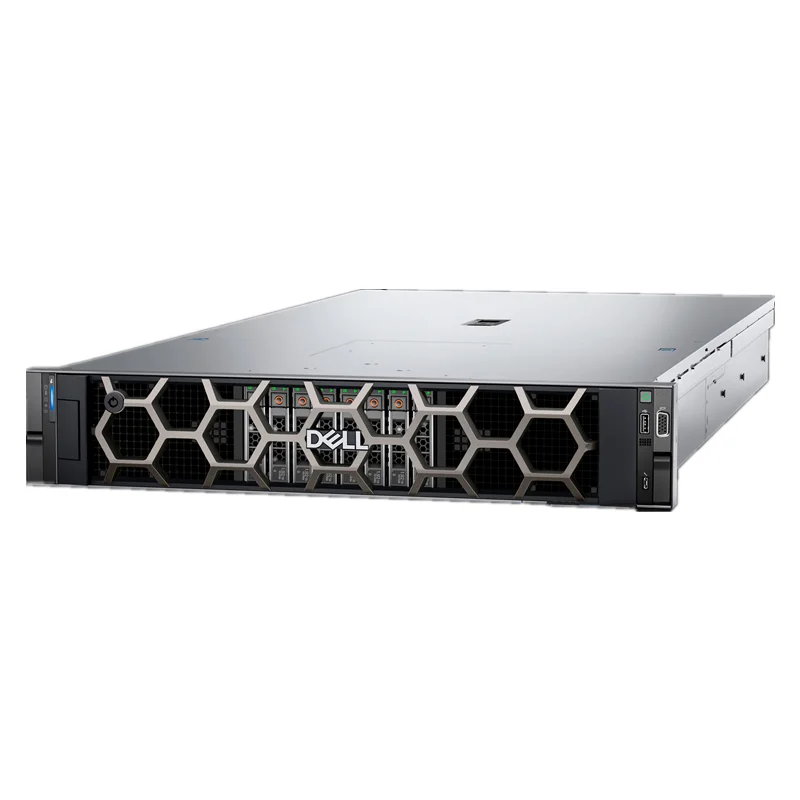

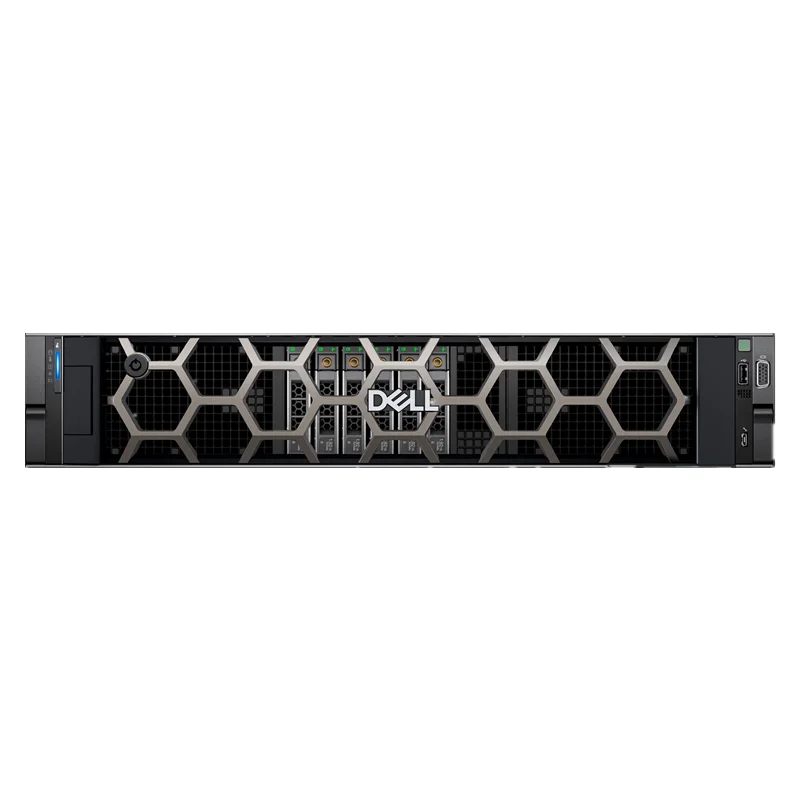

Low Price and Used Dell PowerEdge R760XA Rack Servers 2U Rack Server Support Two Two 4th/5th Gen Processor Images
