Memory :32 x DDR5 RDIMM Up to 4800 MT/s (1 DPC) / 4400 MT/s (2 DPC)
Hard Drive :3.5 inches, 2.5 inches - 24 Gb SAS, 6 Gb SATA
RAID Controller :PERC H755 / PERC H750 / PERC H345
Power Supply :800 W, 1400 W, 2400 W,700 W, 1100 W, 1800 W, 2800 W
Network options :1 x OCP card 3.0 (optional)
Form Factor :2U rack server
GPU Options :Up to 2 x 350 W DW and 6 x 75 W SW
Fans :Up to 6 hot plug fans
MOQ :1 piece
Price :$530-800 / piece
Contact Now
Product Description
The Dell PowerEdge R760 is Dell’s latest two-socket, rack server that is designed to run complex workloads

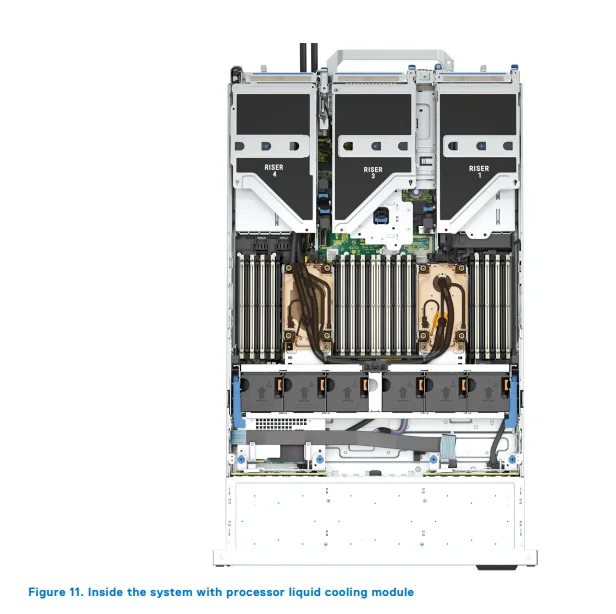

using highly scalable memory, I/O, and network options. The system features: Up to 2 x 4th Gen Intel® Xeon® Scalable Processors with up to 56 cores Optional Direct Liquid Cooling for required CPU SKU and/or configurations 32 DDR5 DIMM slots Two redundant AC or DC power supply units Up to 12 x 3.5-inch SAS/SATA, or 24 x 2.5-inch, 16 x 2.5-inch,
8 x 2.5-inch, or 2 x 2.5-inch(rear), 4 x 2.5-inch(rear) SAS,SATA, or NVMe (HDD/SSD) drives PCI Express® (PCIe) 5.0 enabled expansion slots Network interface technologies to cover Network
Interface Card (NIC)
Product name
Dell PowerEdge R760 Rack server
Memory
32 x DDR5 RDIMM Up to 4800 MT/s (1 DPC) / 4400 MT/s (2 DPC)
RAID Controller
Integrated Software RAID: PERC S150
Optional Hardware RAID Controllers:
PERC H755 (NVMe and SAS/SATA support)
PERC H750 (SAS/SATA support only)
PERC H345
Power Supply
•AC (Platinum): 800 W, 1400 W, 2400 W • AC (Titanium): 700 W, 1100 W, 1800 W, 2800 W • LVDC @-48 VDC Input: 1100 W
