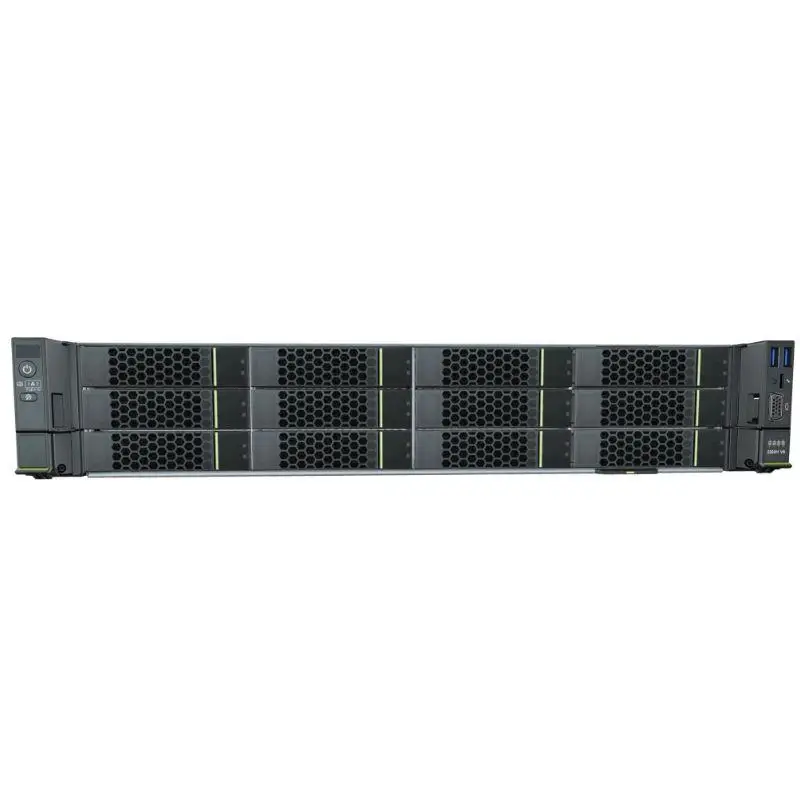

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
|
Local Storage
| Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage:
• Dual M.2 SSDs |
|
RAID support
| Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level
migration, drive
roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks.
Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively, which can be configured as
required.
Hot swappable function supported. |
|
PCIe Expansion
| Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated
for OCP 3.0,
and eleven PCIe 4.0 slots for standard PCIe cards. |
| Chip Set | Intel C621A |
|
Management
| The iBMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis,
automated O&M, and hardware security hardening.
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on
HTML5/
VNC KVM; provides out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for
smart
and simplified management.
• (Optional) Configured with the FusionDirector management software to provide advanced management functions such as five
intelligent
technologies, realizing intelligent, automatic, visualized, and refined management throughout the lifecycle. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian,
etc. |
| Security Features | Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection. |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
| Certifications | CE, UL, CCC, FCC, VCCI, RoHS, etc |
| Installation Kit | L-shaped guide rails, adjustable guide rails, and holding rails. |
| Height X Width X Depth | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10in.) |
|
Power Supply Units
| Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include:
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs
1000 W (input: 100 V to 127 V AC)
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)
• 3000 W AC Titanium PSUs
2500 W (input: 200 V to 220 V AC)
2900 W (input: 220 V to 230 V AC)
3000 W (input: 230 V to 240 V AC)
• 2000 W AC Platinum PSUs
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
