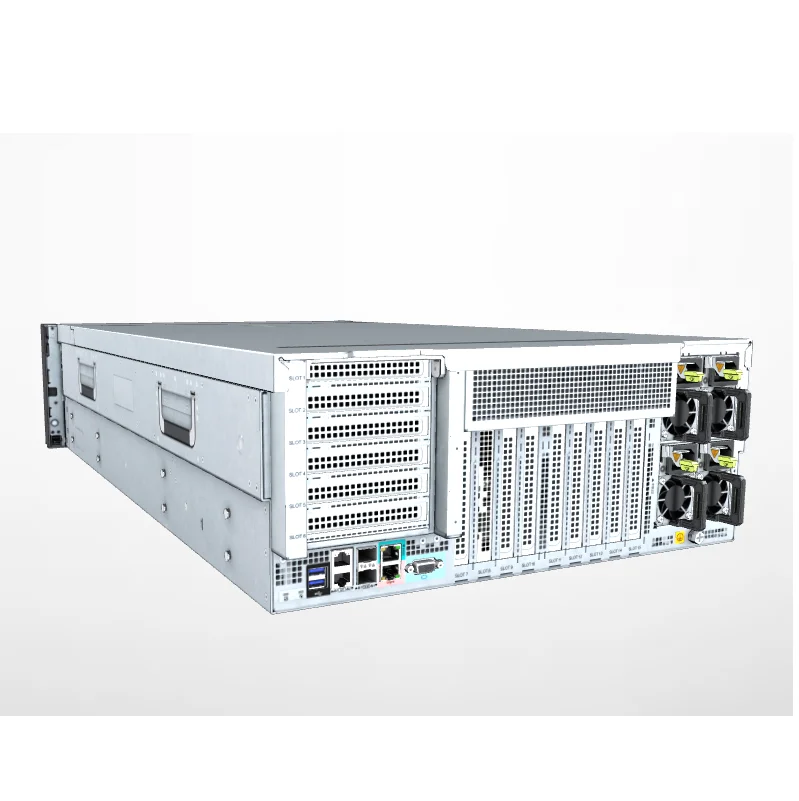

FusionServer 5885H V5 Original 4U 48 DDR4 2933MT/s 16GB Memory 5200/6200/8200 Series Xeon CPU Rack Server in Stock

Model

FusionServer 5885H V5

Form Factor

4U rack server

Processors

2 or 4 1st Generation Intel® Xeon® Scalable processors (5100/6100/8100 series), up to 205 W

2 or 4 2nd Generation Intel® Xeon® Scalable processors (5200/6200/8200 series), up to 205 W

Memory

48 DDR4 DIMM slots, 2,933 MT/s; up to 24 Intel^® Optane™ PMem modules (100 series), 2666 MT/s

RAID

RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration

Power Supply

4 hot-swappable PSUs with optional 2+2 redundancy. Supported options include:

• 1,500W AC Platinum PSUs

• 900W AC PSUs

• 1,200W DC PSUs

Internal Storage

Supports hot-swappable hard drives with the following configuration options:

• 8 x 2.5-inch SA

Supports hot-swappable hard drives with the following configuration options:

• 8 x 2.5-inch SAS/SATA hard drives (front)

• 24 x 2.5-inch SAS/SATA hard drives (front)

• 25 x 2.5-inch SAS/SATA hard drives (front)

• 16 x 2.5-inch SAS/SATA hard drives and 8 x 2.5-inch NVMe SSDs (front)

• 24 x 2.5-inch NVMe SSDs (front)

Flash storage:

• Two M.2 SSDs

S/SATA hard drives (front)

• 24 x 2.5-inch SAS/SATA hard drives (front)

• 25 x 2.5-inch SAS/SATA hard drives (front)

• 16 x 2.5-inch SAS/SATA hard drives and 8 x 2.5-inch NVMe SSDs (front)

• 24 x 2.5-inch NVMe SSDs (front)

Flash storage:

• Two M.2 SSDs

PCIe Expansion

Up to 15 PCIe slots for 15 PCIe 3.0 slots

• 2 dual-width full-height full-length GPU cards (PCIe 3.0 x16) or 4 full-height half-length GPU cards (PCIe 3.0 x16)

Management

BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening

• BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management

• (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management

Dimensions (H x W xD)

175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10 in.)
