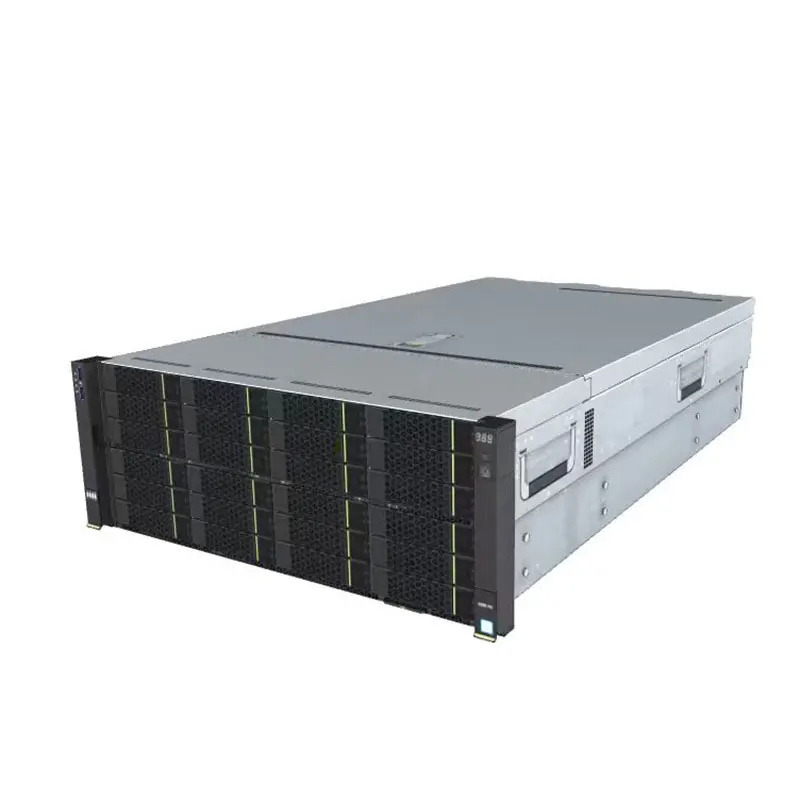

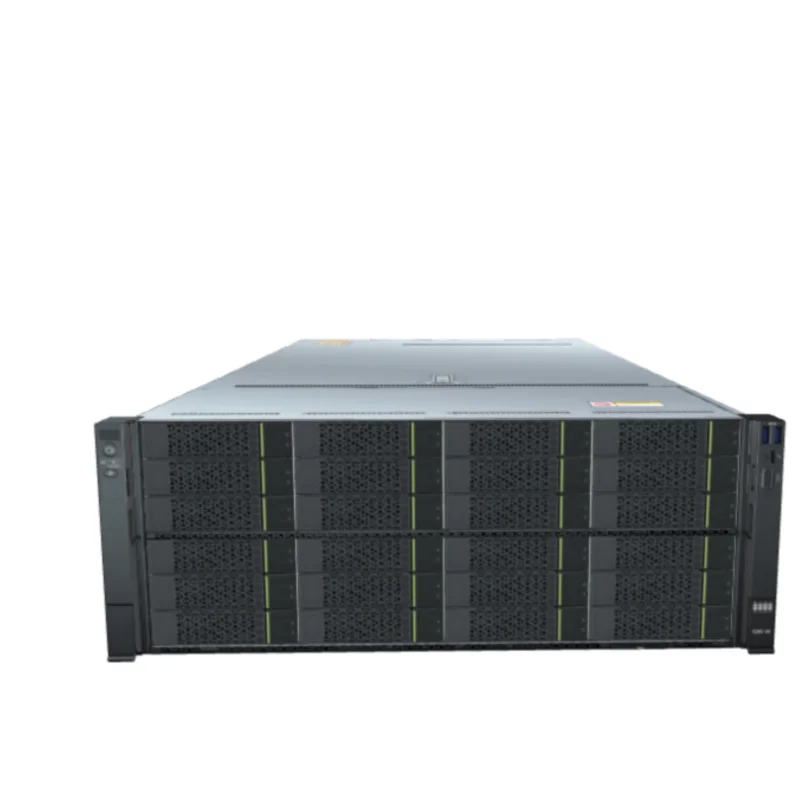

| Model | FusionServer 5288 V6 |
| Form Factor | 4U rack server |
| Processors | Intel® C621A 1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , up to 270W |
| Memory | 32 DDR4 memory slots, up to 3200 MT/s; Up to 16 Intel® Optane TM Persistent Memory 200 Series, up to 3200MT/s |
| Internal Storage | Various hard disk configurations are supported. The hard disks are hot swappable:
· 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs· 24 x 3.5-inch SAS/SATA front hard disks· 4 3.5-inch SAS/SATA internal hard
disks· 16 3.5-inch SAS/SATA hard disks and four 2.5-inch SAS/SATA/NVMe rear hard disks· 12 3.5-inch SAS/SATA disks and eight
2.5-inch rear hard disks (4 x 2.5″ HDDs + 4 x 2.5″ SAS/SATA/NVMe)
Flash storage:· Dual M.2 SSDs |
| RAID | Supports RAID 0, 1, 5, 50, 6, and 60, cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and
web-based remote configuration, and multiple network expansion capabilities |
| Network | OCP 3.0 NIC The two FLEX I/O card slots support two OCP 3.0 NICs, which can be configured as required Supports multiple OCP 3.0
NICs Supports hot swap |
| PCIe Expansion | A maximum of 11 PCIe 4.0 slots, including one dedicated PCIe slot for the RAID controller card, two dedicated FLEX I/O slots for
OCP3.0, and eight standard PCIe 4.0 slots |
| GPU Card | |
| Fan Modules | 4 hot-swappable fans, supporting N+1 redundancy |
| Power Supply Units | 2 x hot-swappable PSUs in 1+1 redundancy mode |
| Management | The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault
diagnosis, automatic O&M, and hardware security hardening
• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on
HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote
control for simplified management
• It is optional to configure the FusionDirector management software that provides advanced management features such as five
intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle |
| OS | Microsoft Windows Server,SUSE Linux Enterprise Server,VMware ESXi,Red Hat Enterprise Linux,CentOS,Oracle Linux,Ubuntu,Debian,
openEuler etc |
| Security | Security features such as power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening
detection |
| Operating Temperature | 5ºC to 35ºC (41ºF to 95ºF), compliant with ASHRAE Classes A1, A2, A3, and A4 |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation Kit | Supports L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis dimensions: 175 mm x 447 mm x 790 mm |
