Hard Drive :16 x 2.5-inch SAS/SATA hard drives and 8 x 2.5-inch NVMe
RAID Controller :RAID 0, 1, 5, 50, 6, or 60
Power Supply :900W /1200W/1500W
Fan Modules :5 hot-swappable fan modules with optional N+1 redundancy
Network Ports :2 x 10 GE + 2 x GE ports
Dimensions :17.5*44.7*79cm
Form Factor :4U rack server
MOQ :1 piece
Price :$1,500-2,800 / piece
Contact Now
Product Description

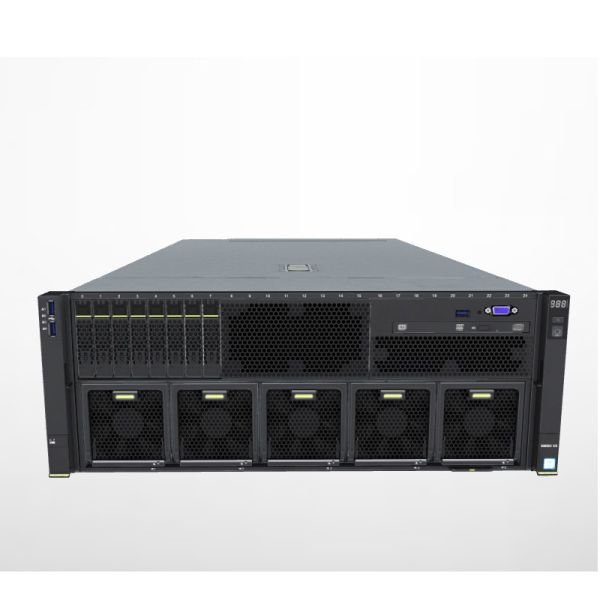

FusionServer 5885H V5 is a 4U, 4-socket rack server. It applies to mission-critical applications that demand high
reliability and performance, and is ideal for compute-intensive services, such as virtualization, HPC, and databases.
The 4U server can be configured with 48 DDR4 DIMMs , and 25 x 2.5-in. hard drives for local storage and supports
a maximum of eight NVMe SSDs. It incorporates patented technologies, such as Dynamic Energy Management
Technology (DEMT) and Fault Diagnosis & Management (FDM), and integrates FusionDirector software for
entire-lifecycle management, helping customers drive down OPEX and improve ROI.
Model
FusionServer 5885H V5
Processors
2 or 4 1st Generation Intel® Xeon® Scalable processors (5100/6100/8100 series), up to 205 W
2 or 4 2nd Generation Intel® Xeon® Scalable processors (5200/6200/8200 series), up to 205 W
Memory
48 DDR4 DIMM slots, 2,933 MT/s; up to 24 Intel® Optane™ PMem modules (100 series), 2666 MT/s
Hard drive disk
Supports hot-swappable hard drives with the following configuration options:
• 8 x 2.5-inch SA
Supports hot-swappable hard drives with the following configuration options:
• 8 x 2.5-inch SAS/SATA hard drives (front)
• 24 x 2.5-inch SAS/SATA hard drives (front)
• 25 x 2.5-inch SAS/SATA hard drives (front)
• 16 x 2.5-inch SAS/SATA hard drives and 8 x 2.5-inch NVMe SSDs (front)
• 24 x 2.5-inch NVMe SSDs (front)
Flash storage:
• Two M.2 SSDs
S/SATA hard drives (front)
• 24 x 2.5-inch SAS/SATA hard drives (front)
• 25 x 2.5-inch SAS/SATA hard drives (front)
• 16 x 2.5-inch SAS/SATA hard drives and 8 x 2.5-inch NVMe SSDs (front)
• 24 x 2.5-inch NVMe SSDs (front)
Flash storage:
• Two M.2 SSDs
RAID Support
RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor to protect cache data from power failures; RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
NetworkPorts
2 x 10 GE + 2 x GE ports
Power Supply
4 hot-swappable PSUs with optional 2+2 redundancy. Supported options include:
• 1,500W AC Platinum PSUs
• 900W AC PSUs
• 1,200W DC PSUs
Fan Modules
5 hot-swappable fan modules with optional N+1 redundancy
Dimensions
17.5*44.7*79cm
Form Factor
4U rack server
