Hard Drive :8 x 2.5-inch/25 x 2.5-inch/24 x 2.5-inch
RAID Controller :RAID 0, 1, 5, 6, 10, 50, or 60
Power Supply :900W/1500W/2000W
Form Factor :2U rack server
LOM Network Ports :2 x GE + 2 x 10 GE ports
Dimensions :8.6*44.7*7.48cm
PCIe Expansion :Up to 11 PCIe 3.0 slots
MOQ :1 piece
Price :$1,500-2,800 / piece
Contact Now
Product Description
The Huawei 2488H V5 is a 2U 4-socket rack server developed for Internet data center (IDC), cloud computing, enterprise, and telecom
service applications.The 2488H V5 combines high-performance computing (HPC) with large storage capacity, low power consumption,
high scalability and reliability, high virtualization application density, and is easy to deploy and manage. It is ideal for various application
scenarios, such as database, cloud computing, virtualization, and memory computing application scenarios. The 2488H V5 supports 4 Intel® Xeon® Scalable Processors in a 2U space, up to 48 DDR4 DIMMs (2,666 MT/s), and up to 25 x 2.5-inch
hard drives for local storage (configurable with 8 NVMe SSDs).
Model
FusionServer 2488H V5
Processors
2 or 4 1st Generation IntelXeon Scalable processors (5100/6100/8100 series), up to 205 W
2 or 4 2nd Generation Intel XeonScalable processors (5200/6200/8200 series), up to 205 W
Memory
48 DDR4 DIMM slots, 2,933 MT/s; up to 24 IntelOptane™ PMem modules (100 series), 2666 MT/s
RAID Support
Supports RAID 0, 1, 5, 6, 10, 50, or 60
Supports a supercapacitor for cache power-off protection
Supports functions such as RAID level migration, drive roaming
Power Supply
hot-swappable PSUs, with support for 1+1 redundancy. The following PSUs are supported:
2,000W AC Platinum PSUs
1,500W AC Platinum PSUs
900W AC Platinum PSUs
1,200W DC PSUs
Hard drive disk
Supports the following hard drive configuration options:
8 x 2.5-inch SAS/SATA HDDs on the front
25 x 2.5-inch SAS/SATA HDDs on the front
24 x 2.5-inch SAS/SATA HDDs on the front
8 x 2.5-inch NVMe SSDs and 16 x 2.5-inch SAS/SATA HDDs on the front
24 x 2.5-inch NVMe SSDs
Supports flash storage: 2 M.2 SSDs
Form Factor
2U rack server
LOM Network Ports
2 x GE + 2 x 10 GE ports
Dimensions (H x W x D)
86.1 mm (2U) x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
PCIe Expansion
Up to 11 PCIe 3.0 slots
Company Information
packing
Vesting Instrument
Contact US
FAQ
Q1: Are you the TRADING COMPANY Or TECHNOLOGY COMPANY?
A: We're A technology company, which have a team full ofin-house certified technicians and specialists
in IT we all have over 20 years’ experience, so we can provide you professional technical service.
Q2: Why can you become my long-term partner?
A: We have cooperated with major well-known marand have been granted authorization qualifications.
Dell, HPE, HUAWEl, Lenovo, Inspur, etc. And we are alsoAlibaba Verified Gold Supplier, which have A strong
and professionally trained pre-sales and after-sales team.
Q3: How can you guarantee the quality of the goods?
A: Well, as we are authorized by the cooperating manufacturer, we only provide original brand-new products .
Before delivery, our engineer will do the test for all the products , and make sure they have 100%new appearance,
also can 100% work well.
Q4:How about the warranty?
A: All of our goods is 3years warranty.
Q5: When l placed orders from you, how about the lead time?
A: most of our goods are in stock, but anyway, we will try our best to ship the goods for you asap and use the fast
shipping way to ship the goods.
Q6: how we make payment ? which way do you have?
A: TT, alibaba,paypal, WU. for these ways , you can use any way you want.

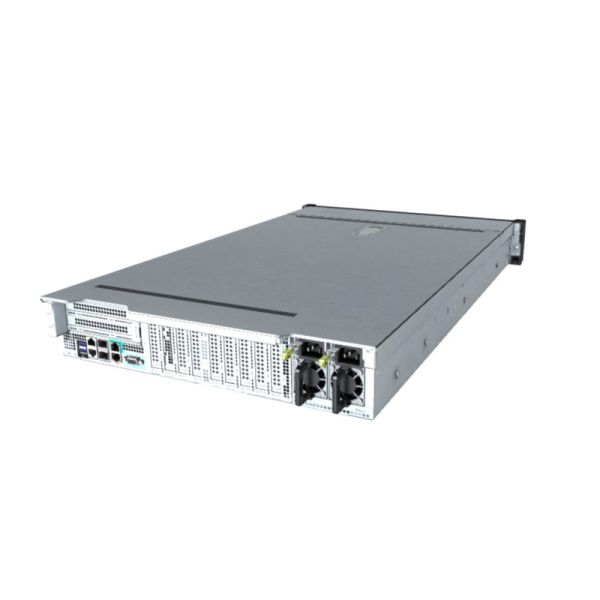

FusionServer 2488H V5 1st/2nd Gen with 2.5-inch SAS/SATA HDD 2U Rack Server on Sale Images
