Product Description

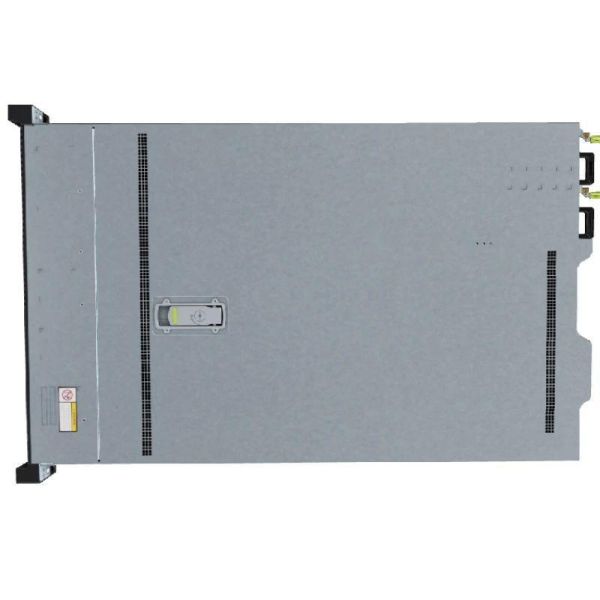

The FusionServer 1288H V5 is a 1U, 2-socket rack server. It is ideal for high-density deployment to process workloads
generated by cloud computing virtualization, HPC, and big data processing. It delivers superior performance and excellent
scalability while improving space utilization in data centers, driving down the overall expenditure.
| Model | FusionServer 1288H V5 |
| Form Factor | 1U, 2-socket rack server |
| Processors | 1 or2 1st Generation Intel® Xeon® Scalable processors(3100/4100/5100/6100/8100 series), up to 205 W |
| RAID Support | RAID 0, 1, 10, 5, 50, 6, or 60 Configured with a super capacitor for power-off protection for the cache (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
| Power Supply | 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |
| Hard Drive | Supports hot-plug hard drives and the following configuration options: 10 x 2.5-inch hard drives (6–8 NVMe SSDs and 2–4 SAS/SATA drives, with a total number of 10 or less) 10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total number of 10 or less) 10 x 2.5-inch SAS/SATA/SSDs 8 x 2.5-inch SAS/SATA hard drives 4 x 3.5-inch SAS/SATA hard drives Flash storage: 2 M.2 SSDs |
| PCIe Expansion | Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Network Ports | LOM: 2 x 10GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports |
| Dimensions (H x W xD) | Chassis with 3.5-inch hard drives: 43 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 43 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
