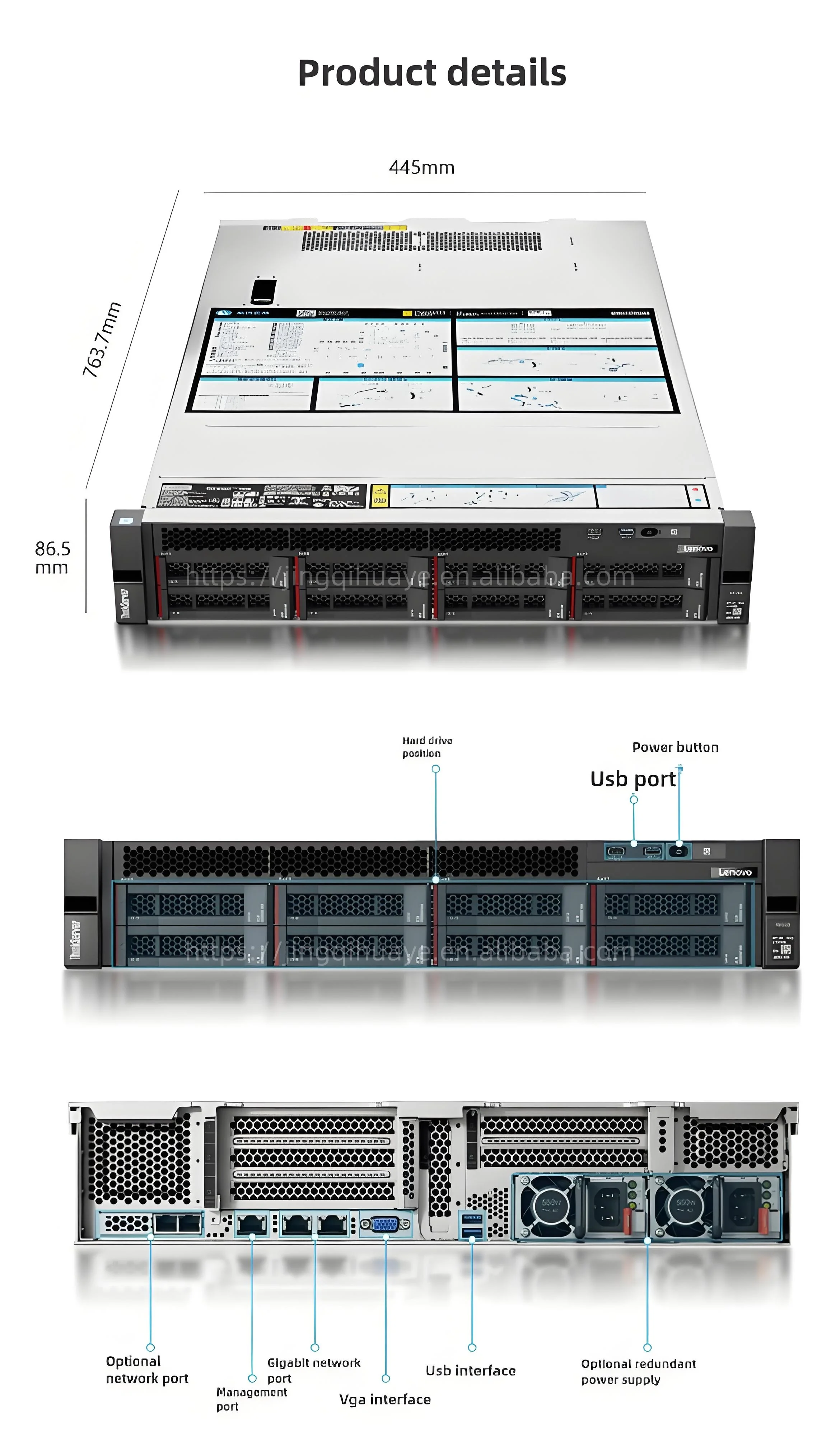

Lenovo ThinkServer SR588 rack mounted server Balanced performance and scalability
Powerful and balanced The Lenovo ThinkServer SR588 is designed for rack environments that require dual processors and large capacity memory, meeting the needs of large and medium-sized enterprises for cloud and big data environments. SR588 is a balanced mid-range rack server that is also ideal for small-scale virtualization, collaboration, and productivity applications, as well as caching and logging.
With 1.2 times higher memory bandwidth than the previous generation, two second-generation Intel Xeon Scalable processors Platinum Series can improve agility and manage high demand workloads containing large amounts of data. The Intel Alto data center grade persistent memory combined with up to 1TB of 2933MHz TruDDR4 memory capacity allows applications to run faster and more efficiently, and improve performance at lower costs and higher overall value.
Flexible and scalable
SR588 supports up to 8 hot swappable 3.5-inch hard drives or 16 hot swappable 2.5-inch hard drives. Up to four 2.5-inch or 3.5-inch shelves can be AnyBay, supporting not only SAS/SATA drives but also direct connection to NVMe drives (bypassing the SAS bus) for ultimate storage performance. In addition, SR588 supports SAS and SATA HDDs and SSDs with up to 12Gb SAS throughput, as well as up to two M.2 drivers, enabling faster and more secure operating system boot.
SR588 provides storage flexibility, including various types of NIC extensions such as LOM, ML2, and PCIe, as well as replaceable I/O expansion cards, enabling various adapter slot configurations.
Reliable and secure
For many years, Lenovo servers have been reliable servers in the industry. Lenovo servers once again rank first in the new ITIC X86 server reliability survey. SR588 is no exception, it contains numerous functions that can improve the reliability and security of servers and the most important data.
ThinkShield is a comprehensive end-to-end security approach that starts from development and runs through the entire supply chain and device lifecycle. Our top priority, from the data center to the network edge, is to protect your business with every product.
Appearance/Height
2U
processor
Up to 2 second-generation Intel ® xeon ® Scalable processor Platinum series, up to 150W, with up to 24 cores per CPU
Memory
Up to 1TB of 2933MHz TruDDR4 (planned support) memory with 16 slots, compatible with Intel ® Aoteng ™ Data center level persistent memory
Hard drive Disk tray
Up to 16 2.5-inch hard drives or 12 3.5-inch hot swappable hard drives or up to 8 3.5-inch easy swappable hard drives; Optional AnyBay backplane supports up to 4 NVMe hard drives
Scalability Expansion Slots
Up to 6 PCIe 3.0s, flexible I/O configurations can be achieved through expansion cards
Internal memory
Up to 168TB (3.5-inch SAS/SATA HDD); 107.6TB (3.5-inch SSD); 38.4TB (2.5-inch SAS/SATA); 122.9TB (2.5-inch SSD); 16TB (2.5-inch direct NVMe); Up to 2 M.2 SSDs (supporting Raid 1)
network network interface
Standard configuration includes 2 GbE ports; Standard LOM interface; Optional ML2
power supply
Up to 2 hot swappable/redundant 550W/750W Platinum, 750W Titanium
Management oriented Administration
XClarity Administrator; XClarity Controller (embedded hardware); Optional XClarity Pro
operating system Supporting operating systems
Microsoft,SUSE,Red Hat,VMware
secure
Lenovo ThinkShield, Lock Panel, Lock Top Cover; Standard TPM 2.1; Optional TCM
Availability and redundancy
Hot swappable HDD/SSD/NVMe Hot swappable power supply and fan Optical pathway diagnosis PFA and ASHRAE A4 support suitable for all major components (with limitations) Optional XClarity Pro with remote alarm function.
port NIC port
Comes standard with 2 GbE ports; Standard configuration includes one GbE dedicated management port; Optional up to 2 1GbE, 2 10GBase-T, or 2 10GBase SFP+
HBA/RAID support
Standard software RAID (up to 8 ports); Up to 16 port HBA/or hardware RAID, including flash cache
Service Warranty
three years
